LED UV Curing Machine For Oca Optical Glue
1. Product Description
Application area:
Our last new LED UV Curing Model is YK-300LEDUV. it is small Volume and easy carrying .
widely use for of field of drying printing LED UV ink ,LED UV paper printing ,LED UV glue ,
LED UV tunnel drying ,LED UV ink , LED UV testing .
favorable price and high quality .
Main performance
1. Cold light source, no heat radiation, suitable for bonding heat sensitive materials
2. Immediately on and off, no preheating is required, and the irradiation intensity can reach
500mw/cm2--12000mw/cm2 or more.
3. Compact size, making it easy to integrate into fully automated production lines and equipment
4. UV LED has no infrared radiation, no harmful gas, and meets ROHS standards. Safer and more
environmentally friendly than traditional mercury lamps
5. The service life is over 20,000 hours, which can greatly reduce operating costs and maintenance
work hours.
6. The connecting cable is a bending-resistant cable, which can be installed at the movable part at will,
to meet the needs of repeated movement.
| 1. | Conveyor length :1200 |
| 2 | Conveyor width:300mm |
| 3 | machine size: (L)1300x(W)320x(H)750mm |
| 4 | UV Drying products:300*100*1200mm |
| 5 | Conveyor belt size:L1200* W300MM |
| 6 | UV Lamp power:1PCS*1.5KW/220V |
| 7 | Total wattage:3KW
Wind fan wattage: 500W/220V
motor wattage:1000W/1P/220V |
| 8 | Conveyor speed:0~30m/min,Hight of the entrance :120mm |
| 9 | Gross weight: 180 KG Package size:L*W*H 1400*420*850mm |
| Warranty | For all our machines, we provide one-year warranty.lifelong maintenance
Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost. |
|
|

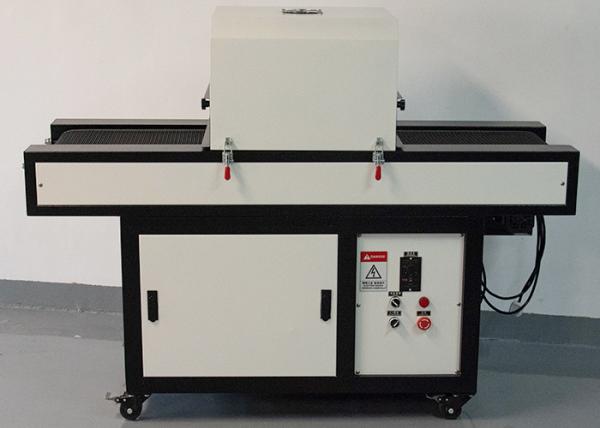

LED UV Curing Machine For Oca Optical Glue Images
|
